A microcontroller-assisted 12AU7 valve distortion pedal designed to run from a standard 9V pedalboard power supply. Combines a traditional high-voltage valve signal path with a novel auto-bias system written in C, and a unique triode stacking arrangement that blends harmonics dynamically across two gain stages.
Overview
An STM8S0003 microcontroller running custom C firmware monitors the operating conditions of each triode and calibrates the optimal bias point with a single button press. No multimeter, no manual trimpots, no guesswork — the pedal finds its own sweet spot. Designed to run reliably from a standard 12V DC pedalboard supply, with a new revision supporting 9V operation via an internal inductor step-up.
A unique blend control transitions seamlessly between single and dual triode output. Middle positions blend harmonics dynamically from the second triode, producing a saturated valve tone without the harsh fizz of conventional gain stacking. Paired with the bias and voice switches, the blend knob gives the player control over the harmonic content and feel of the distortion — something I have not seen done anywhere else.

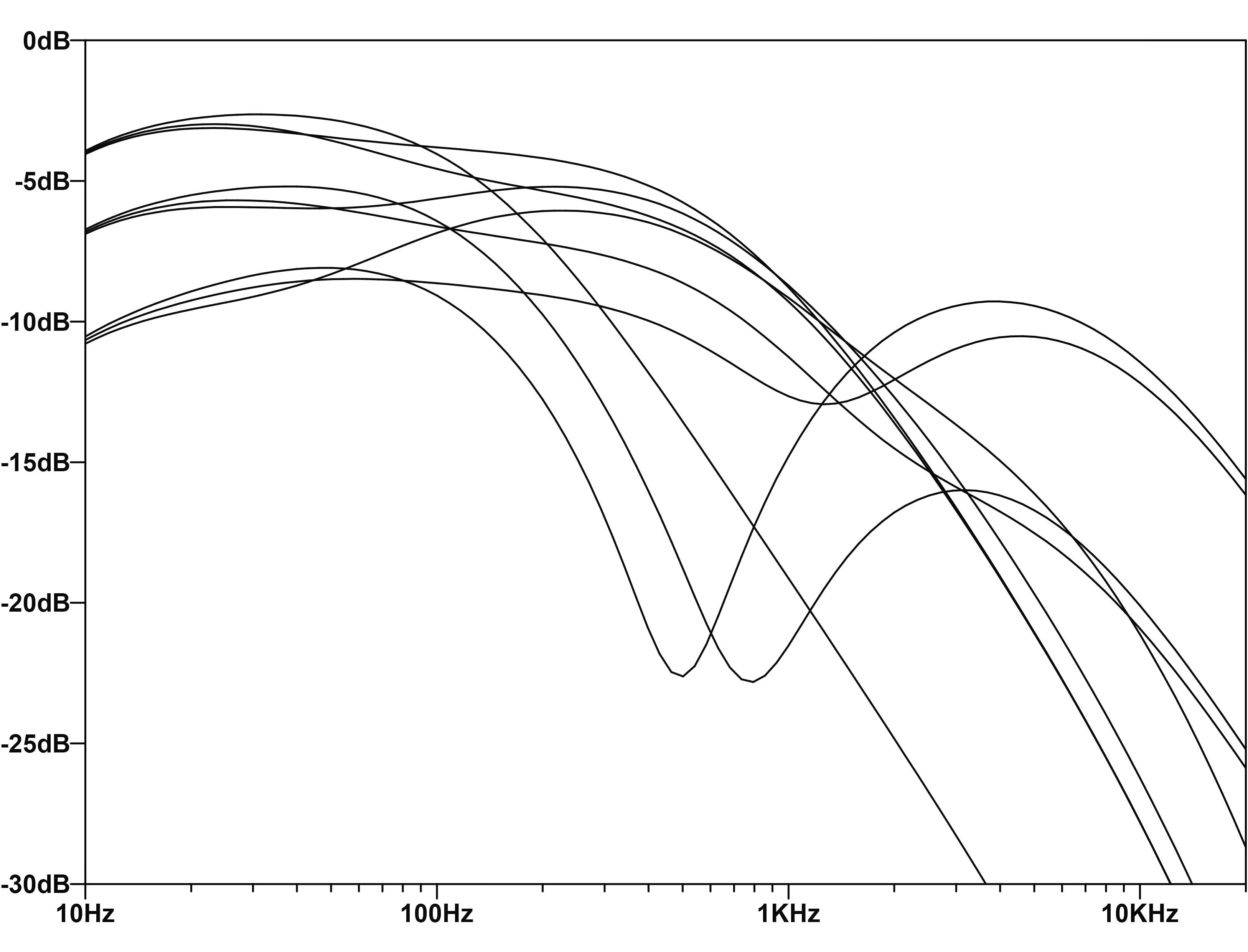

A bright control (high-pass shelving filter) manages pre-distortion bass content, greatly influencing the pedal's overall tone. A tilt bass/treble EQ with interactive mid boost/cut contour covers everything from heavy mid-scoops to raunchy blues humps. The breakup switch selects between three bias points — Classic, Hot, and Tight — while the voice switch adjusts the second triode coupling for Crunch, Overdrive, or Lead voicings.
Under the hood

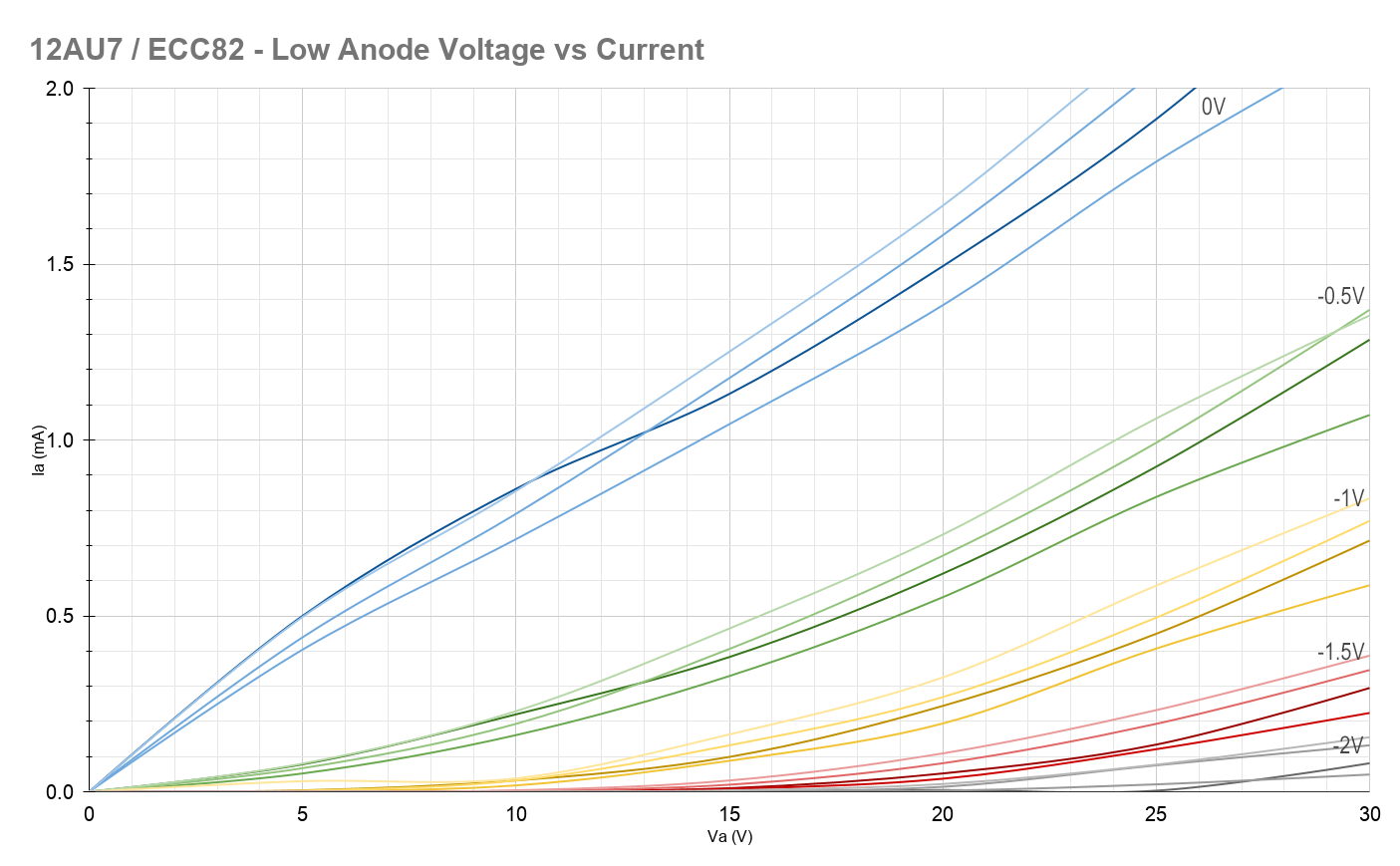

The pedal runs a traditional 12AU7 (ECC82) valve at 23V internally, stepped up from a standard 12V DC pedalboard supply via an internal inductor. A newer revision adds 9V support at 350mA for even more flexible power options. Running at a fraction of the valve's rated 300V keeps power consumption low enough for a standard pedal supply while still delivering the harmonic character that makes valves desirable.
The whole package fits in a compact enclosure with true-bypass switching and a configurable input boost of up to 12dB. Two gain stages — single, parallel blend, or series — give the player countless distinct operating modes, and the 9-voice system (three bias settings × three coupling modes) covers a wide range of tones from warm cleans to saturated lead.

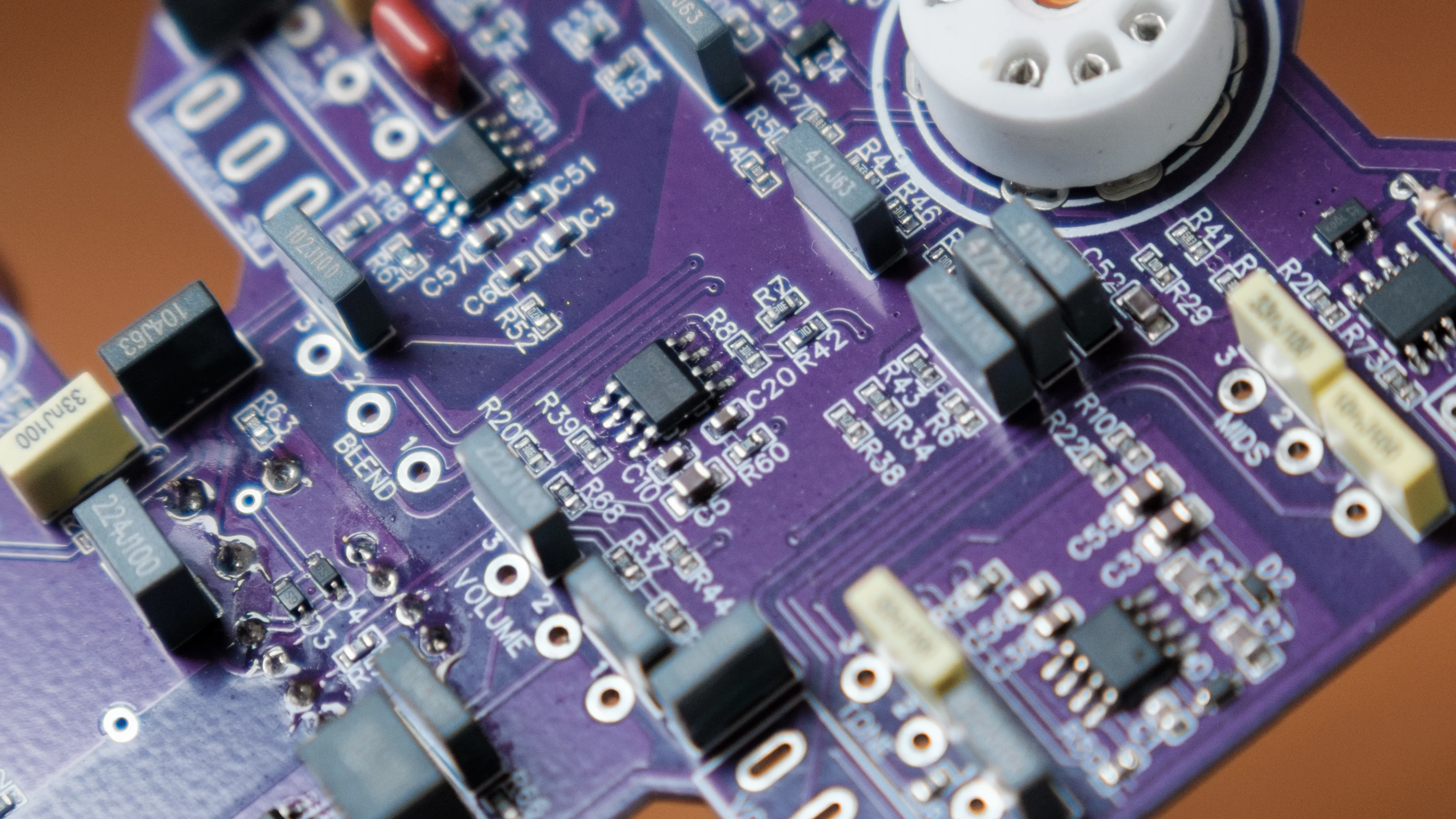

The PCB was designed from scratch and manufactured with pick-and-place component assembly, enabling a compact double-sided layout that integrates the valve, microcontroller, power supply, and analogue signal path on a single board.
The controls

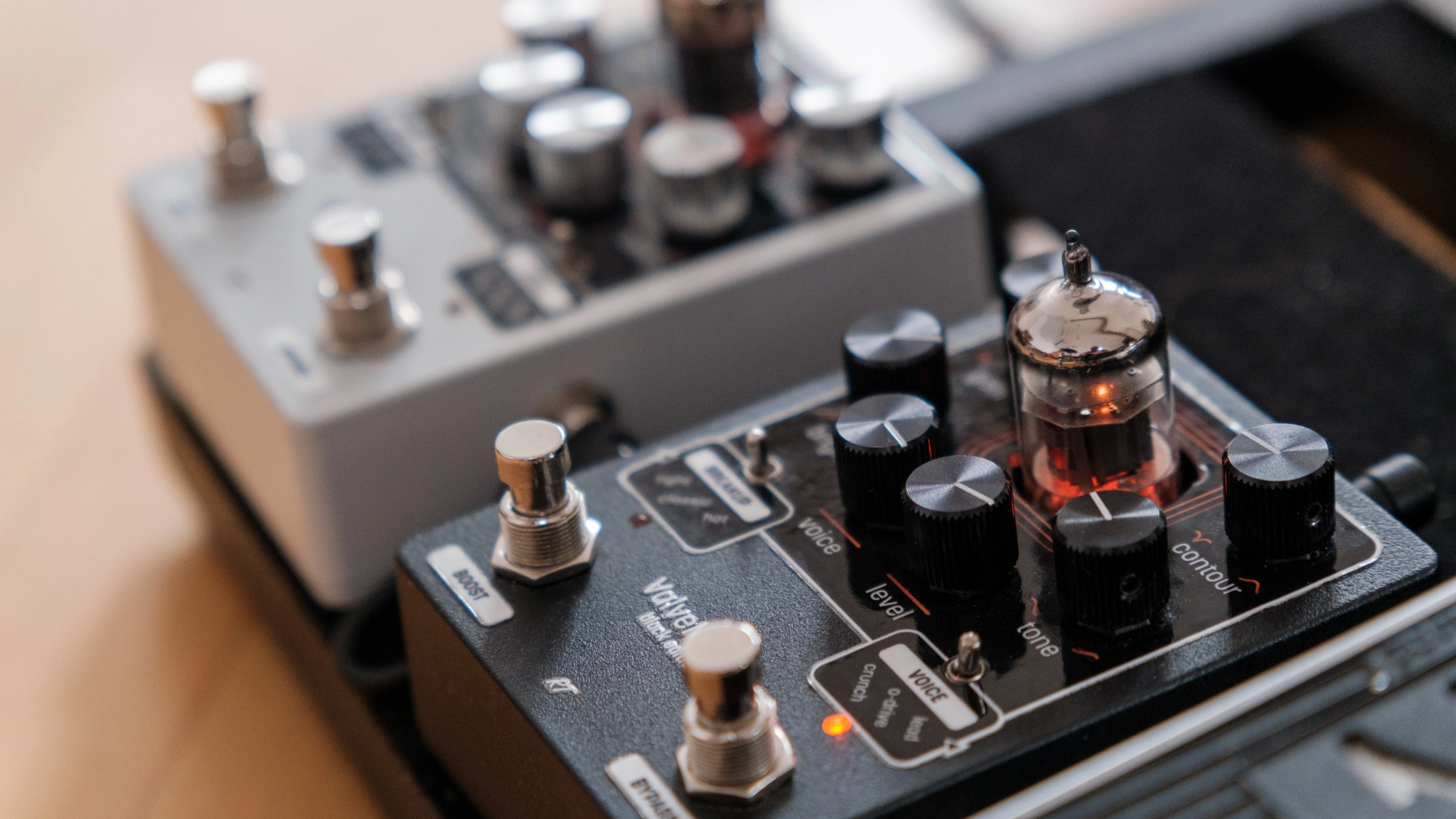

The blend knob is the centrepiece of this project. It controls the triode stacking arrangement and interacts with both the bias and voice switches, giving the player a huge range to customize the already 9 distinct voicings from a single control. The breakup switch changes the bias point for both stages — Classic for centre-biased symmetry, Hot for grid-clipping aggression, and Tight for an anode/grid split that tightens the low end.
The voice switch adjusts the second triode coupling and the tone applied by the blend control: Crunch for a warmer, less high-end voicing; O-Drive for the classic valve overdrive character; and Lead for extra gain with a more aggressive top end. The bright control sits before the distortion stages, curbing bass content that would otherwise turn muddy under gain, while the tone stack presents a huge range of options in a compact dual-pot tilt/scoop configuration.
